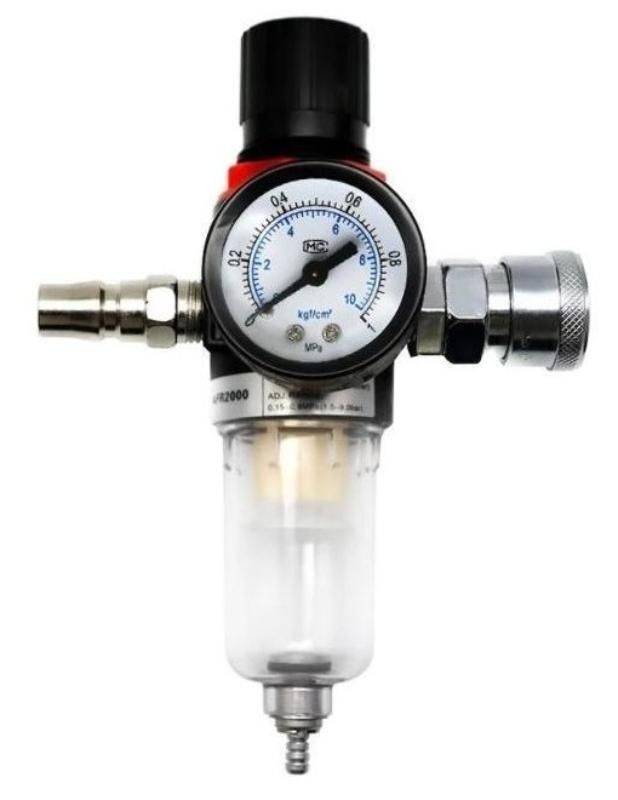

Pressure reducer with steam trap

This professional pressure regulator with a water trap is designed for compressed air preparation in pneumatic systems. It effectively reduces and maintains constant operating pressure, ensuring the proper operation of devices such as paint sprayers, inflating guns, and impact wrenches.

The device filters, dehydrates, and purifies compressed air of contaminants, extending the life of pneumatic tools. The regulator is equipped with a precise pressure gauge with a dual scale (barrel and psi), allowing for constant monitoring of the operating pressure. The robust construction guarantees durability and reliable operation even during intensive use.

Product features:

• Reduces and maintains constant operating pressure
• Filters, dehydrates, and purifies compressed air
• Precise pressure gauge with dual scales for bar and psi
• Designed for pneumatic equipment
• Durable construction ensures long life
• Easy operating pressure adjustment
• Ideal for workshops, paint shops, and service centers

Technical data:

• Type Pressure reducer with water trap
• Height 165 mm
• Width 120 mm
• Operating temperature -4°C to +60°C
• Valve type Flow valve
• Filtration 0.040 mm (40 microns)
• Threads 1/4"
• Maximum inlet pressure 10.0 bar
• Maximum flow 1000 l/min
• Product include: Pressure reducer with water trap and 1/4" connection threads
